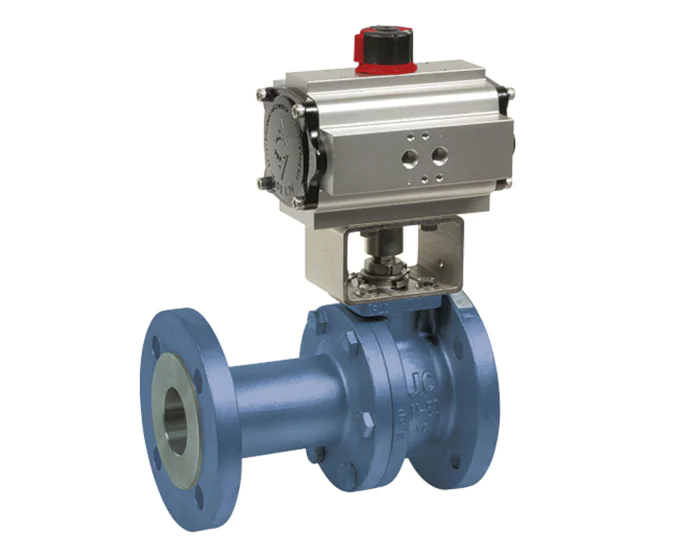

JC valves carbon steel ball valve 340AIGF + ADA/ASR pneumatic actuator
€1,030.20
(excl. btw)
The 340AIGF series JC VALVES ball valve has an A216WCB steel body, a CF8M carbon steel ball and glass fiber + PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR. Flanged PN16 RF, EN 558 series 1 face to face.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN80 - 3''
Face to Face (mm)
310.0
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
16
Connections
Flanged PN16
Seats
PTFE-Glass
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
Warranty period
1 year
CE
Risk category I
Range
JC Valves
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2375
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting Flanged PN16
316AIGF080015104
S1002359
€1,030.20
(excl. btw)
add to cart
2376
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return Flanged PN16
316AIGF080016106
S1002360
€1,305.60
(excl. btw)
add to cart
2377
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting Flanged PN16
316AIGF100015104
S1002361
€1,448.40
(excl. btw)
add to cart
2378
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return Flanged PN16
316AIGF100016106
S1002362
€1,683.00
(excl. btw)
add to cart
2379
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return Flanged PN16
316AIGF125016107
S1002363
€3,321.16
(excl. btw)
add to cart
2380
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting Flanged PN16
316AIGF150015106
S1002364
€3,824.21
(excl. btw)
add to cart
2381
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return Flanged PN16
316AIGF150016108
S1002365
€4,476.19
(excl. btw)
add to cart
2382
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40
340AIGF015015100
S1002366
€382.41
(excl. btw)
add to cart
2383
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40
340AIGF015016101
S1002367
€417.91
(excl. btw)
add to cart
2384
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40
340AIGF020015100
S1002368
€431.59
(excl. btw)
add to cart
2385
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return Flanged PN40
340AIGF020016102
S1002369
€503.14
(excl. btw)
add to cart
2386
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Flanged PN40
340AIGF025015101
S1002370
€438.60
(excl. btw)
add to cart
2387
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Flanged PN40
340AIGF025016102
S1002371
€508.99
(excl. btw)
add to cart
2388
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40
340AIGF032015101
S1002372
€562.26
(excl. btw)
add to cart
2389
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40
340AIGF032016102
S1002373
€618.04
(excl. btw)
add to cart
2390
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40
340AIGF040016103
S1002374
€631.07
(excl. btw)
add to cart
2391
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Flanged PN40
340AIGF050015102
S1002375
€683.59
(excl. btw)
add to cart
